3M/Scott Mask For Sigma Ii – Vision 3 Mask LQF/ML

3M/Scott Mask For Sigma Ii - Vision 3 Mask LQF/ML

Overview

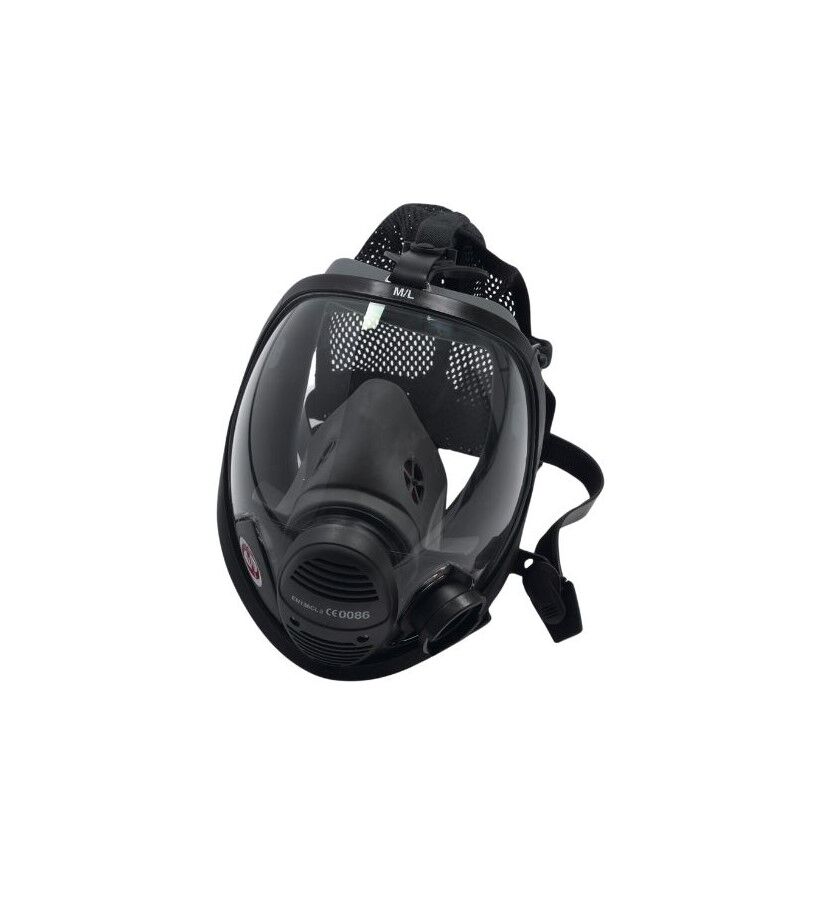

The Scott Vision 3 Mask is designed for a wide range of facial shapes with four size options. Made with a Liquid Silicone Rubber outer mask and EDME ori-nasal inner mask, it offers superior fit and durability.

Advanced Visor and Communication

The multi-curvature polycarbonate visor is scratch-resistant and flame-retardant, ensuring optimal visibility. A speech diaphragm allows clear communication, while a low-resistance exhalation valve ensures effortless breathing.

Harness and Compatibility

The mask includes multiple harness options: five-point neoprene strap, Kevlar net style, or a clamping system for helmets. It also supports integrated spectacle frames for added comfort.

Approval and Certification

• CE marked in accordance with EN136 Class III
• CE marked in accordance with EN137:2006 Class II (when used with Scott Propak)
• CE marked in accordance with EN139 (when used with Scott airline equipment)
• Compliant with AS1716/NZ

Materials and Technical Specifications

• Visor: Polycarbonate with silicone coating
• Inhale Valve Flaps: Silicone rubber
• Exhale Valve Flaps: Polyisoprene Rubber
• Exhale Valve Housing: Polyamide
• Exhale Valve Spring: Stainless Steel
• Speech Diaphragm: Mylar (Polyester) film membrane in a molded polyethylene grid with anodized aluminum coating
• Visor Surround: Polyamide 6-6
• Outer Mask: Injection-molded liquid silicone
• Front Cover: Glass-filled polyamide
• Demand Valve Port: Glass-filled polyamide
• Inner Mask: Thermoplastic elastomer
• Screws: Stainless Steel
• Nuts: Nickel-plated brass
• Buckles: Polyamide
• Head Harness: 5-point neoprene, net head harness in polyester or Kevlar material
• Clamping System (optional): Stainless steel brackets, plastic clamp mechanism

Packing Specification

• Dimensions: 265x190x150 mm
• Weight: 0.75 kg
