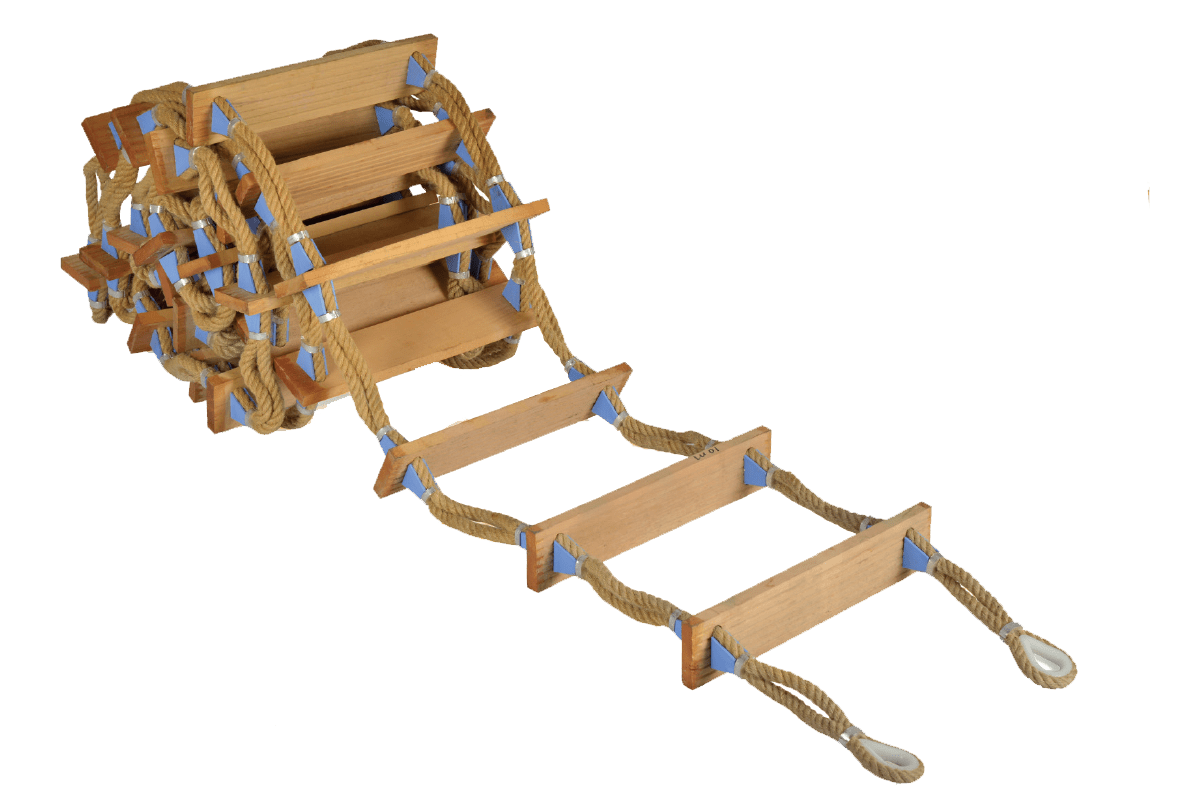

Embarkation Ladder

An embarkation ladder is a type of ladder specifically designed for use in marine and maritime environments. It is used as a means of safely boarding or disembarking from a ship. Especially when the ship is anchored or docked and there is a need to transfer between the ship and another vessel, a pier, or the shore.

An embarkation ladder must reach from the deck to the waterline. It should work under all conditions of a trim of up to 10° and a list of up to 20° either way. An embarkation ladder is needed at each embarkation station or every two adjacent stations for survival craft launched alongside the ship.

SKU: EMBAR Category: Tag:

View our other product catagories

Description

An embarkation ladder is a type of ladder specifically designed for use in marine and maritime environments. It is used as a means of safely boarding or disembarking from a ship. Especially when the ship is anchored or docked and there is a need to transfer between the ship and another vessel, a pier, or the shore.

An embarkation ladder must reach from the deck to the waterline. It should work under all conditions of a trim of up to 10° and a list of up to 20° either way. An embarkation ladder is needed at each embarkation station or every two adjacent stations for survival craft launched alongside the ship.



TECHNICAL DATA

Article number: EMBAR
Step: Hardwood (beech wood)
Spreader: Hardwood (beech wood) Side
Ropes: 4 Strand Manila rope
Step Thimbles: Hardwood (beech wood)
Rope clamp: Aluminium



APPROVALS

• Istituto Giordano
• Wheelmark



STANDARDS

• Complies with IMO Res. A1045(27), MSC / Circ. 1428
• ISO 799 (2004), SOLAS 74 Conv. as, amended Reg. V23, X/3

Please specify the required length of the embarkation ladder in your quote.
