Flame Detector Test Unit Incl Suitcase

Flame Detector Test Unit – Including Suitcase

Ensure the reliability of flame detectors with the Flame Detector Test Unit, designed for safe and efficient testing in industrial and marine environments.

Key Features

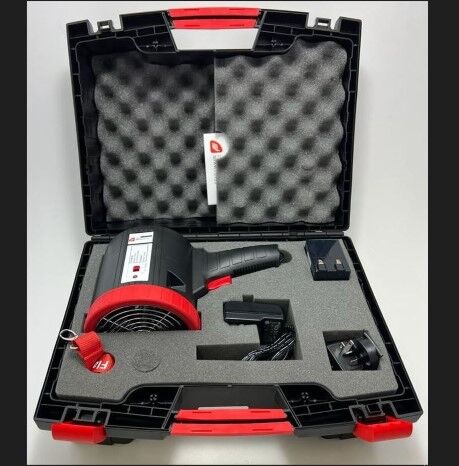

• Portable Design: Comes in a sturdy suitcase for easy transport and storage.
• Effective Testing: Simulates real flames to check detector response.
• User-Friendly Operation: Simple controls for quick and hassle-free testing.
• Durable Construction: Built to withstand regular use in demanding environments.

Specifications

• Power Supply:
  • Standard adapter: 230 Vac, EU plug
  • Optional adapter: 100-240 Vac, with selectable plugs for US, EU, GB, and AU
• Test Range:
  • UV flame detectors: up to 8 meters (26 ft)
  • IR and UV/IR flame detectors: up to 4 meters (13 ft)
• Battery:
  • Sealed Lead Acid battery, 12 Vdc / 2.8 Ah
• Lamp:
  • H3, 12 Vdc / 100 W
• Usage Duration:
  • 10-15 minutes under optimal conditions and continuous use
• Housing:
  • ABS (plastic), black
• Protection Rating:
  • IP30 / NEMA 1
• Operating Temperature:
  • +4 to +40°C (+39 to +104°F)
• Shipping Dimensions (Box):
  • 310 x 220 x 210 mm (12 5/8 x 9 x 8 5/8 in)
• Shipping Weight:
  • 2.1 kg (4.62 lbs)

Compatibility

This unit replaces the following models: T-229/1, T-229/2, and T-229/3.

Ensure your flame detectors function correctly with this reliable and efficient test unit.

For more information about marine safety, visit the International Maritime Organization (IMO) website: IMO.

If you have any questions, require further details about our products, or need assistance with placing an order, please feel free to contact us. Our team is here to help and ensure you have all the information you need.
