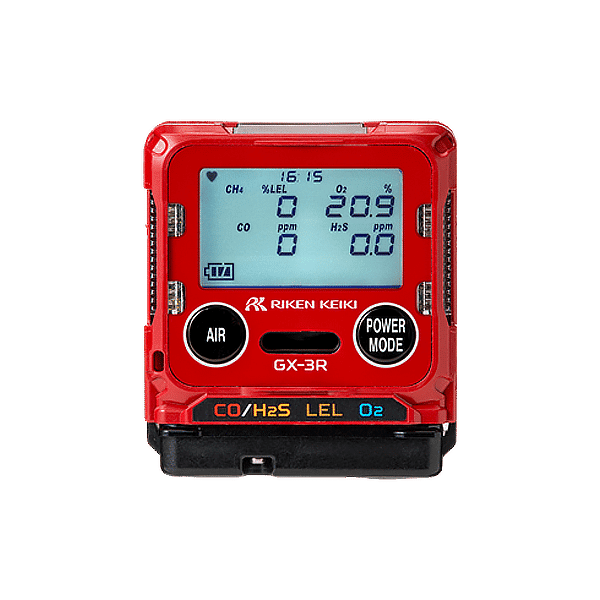

GX-3R

World’s smallest and lightest 4 gas monitor

SKU: GX-3R Category: Tag:

View our other product catagories

The GX-3R is the world's smallest and lightest 4-gas portable detector, designed to protect workers in hazardous environments by simultaneously monitoring four gases:

  • Combustible gases (LEL)
  • Oxygen (O₂)
  • Hydrogen sulfide (H₂S)
  • Carbon monoxide (CO)

Key Features

  • Ultra-Compact Design: Weighing only about 3.52 ounces (100 grams) and measuring approximately 2.2 x 2.55 x 1.02 inches, it's designed for comfortable, continuous wear.
  • Durability: The device is water and dust resistant with an IP66/68 rating, ensuring reliable performance in harsh conditions.
  • Long Battery Life: Equipped with a rechargeable lithium-ion battery that provides up to 25 hours of continuous operation on a single charge.
  • User-Friendly Interface:
    • Two-Button Operation: Simplifies use, reducing training time.
    • Clear Display: Bright, backlit LCD screen shows real-time gas concentrations and alarm conditions.
    • Alarms: Features audible (95 dB at 30 cm), visual (bright LED lights), and vibration alarms to immediately alert the user of hazardous conditions.
  • Safety Features:
    • Man Down Alarm: Alerts others if the user becomes immobile.
    • Automatic Calibration Reminder: Ensures the device remains accurate over time.
    • Data Logging: Stores exposure data for record-keeping and analysis.
  • Wireless Communication (Optional):
    • Bluetooth Connectivity: Allows for real-time monitoring and data transfer to compatible devices using dedicated software or apps.
  • Accessory Compatibility:
    • Docking Stations: Compatible with SDM-3R calibration stations for automated bump testing and calibration.
    • Pump Adapter (Optional): Can be attached for remote sampling in confined spaces.

Technical Specifications

  • Detection Ranges:
    • Combustible Gases (LEL): 0-100% Lower Explosive Limit
    • Oxygen (O₂): 0-40% Volume
    • Hydrogen Sulfide (H₂S): 0-100 ppm
    • Carbon Monoxide (CO): 0-500 ppm
  • Sensor Types: High-quality micro-electrochemical sensors for toxic gases and oxygen; catalytic combustion sensor for combustible gases.
  • Response Time: T90 (time to reach 90% of the final reading) is less than 30 seconds for most gases.
  • Operating Conditions:
    • Temperature: -4°F to +122°F (-20°C to +50°C)
    • Humidity: 0 to 95% RH (non-condensing)
  • Power Supply: Rechargeable lithium-ion battery with a charging time of approximately 3 hours.
  • Certifications:
    • Safety Approvals: ATEX, IECEx, CSA, and UL certifications for use in hazardous locations.

Additional Resources

For more detailed information, including user manuals, technical datasheets, and purchasing options, please visit the official product page:

RKI Instruments - GX-3R Gas Detector

Feel free to ask if you need information on specific features, comparisons with other models, or assistance with selecting the right gas detection solution for your needs.
