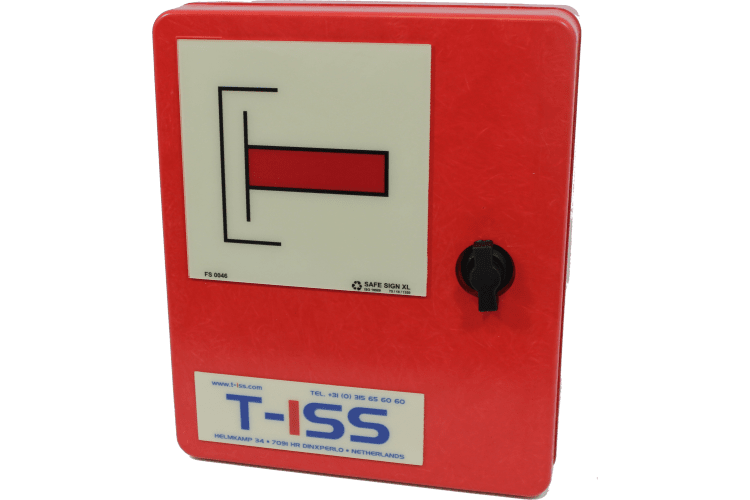

International Shore Connection Complete
An International Shore Connection is a connection point that allows vessels to receive an additional water supply from the shore. In the unfortunate case of a fire, a Shore Connection functions as a backup measure for firefighters on ships. In case there is a total failure of pumps on board, the ship’s own water supply is not sufficient. The ISC makes a connection to shore where another water source can take over. It provides a means to connect an external water source, typically from shore facilities or another vessel, to the ship’s fire main.
The International Shore Connection is made of BMC glass fiber polyester. It can stand the harsh conditions of the maritime environment. The color of our ISC is red, to enhance visibility and to stay in line with the color ‘red’ for all firefighting symbols. The box comes as a complete box with a flange and sign or as a separate box or separate flange.
View our other product catagories
An International Shore Connection is a connection point that allows vessels to receive an additional water supply from the shore. In the unfortunate case of a fire, a Shore Connection functions as a backup measure for firefighters on ships. In case there is a total failure of pumps on board, the ship’s own water supply is not sufficient. The ISC makes a connection to shore where another water source can take over. It provides a means to connect an external water source, typically from shore facilities or another vessel, to the ship’s fire main.
The International Shore Connection is made of BMC glass fiber polyester. It can stand the harsh conditions of the maritime environment. The color of our ISC is red, to enhance visibility and to stay in line with the color ‘red’ for all firefighting symbols. The box comes as a complete box with a flange and sign or as a separate box or separate flange.
In line with SOLAS regulations.
TECHNICAL DATA
Maximal pressure: 1.0 N / mm2
Thread thickness: 2”
Dimensions: 285 x 260 x 70 mm
Weight: 3 up to 7 kg
BENEFITS & FEATURES
• Designed to last in the tough marine environment
• BMC glass fiber polyester box, flame retardant
• Cabinet door can be opened in both the right and left direction
• Stainless Steel lock and hinges
• Comes with applied SafeSign sign with a 5-year warranty, even on outdoor use
Available Downloads
None
