Portable Ultrasonic Liquid Level Indicator HS-MLI-2

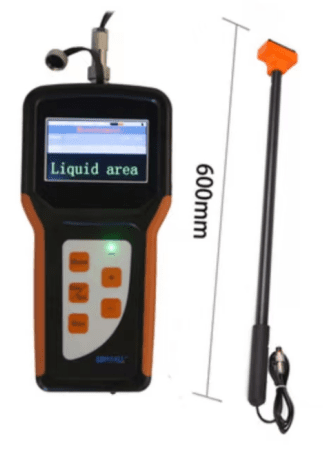

Portable Ultrasonic Liquid Level Indicator with extension probe rod

SKU: HS-MLI-2 Category: Tag:

View our other product catagories

The portable liquid level indicator HS-MLI is designed to measure the presence or absence of liquid at a certain height position in a container or in pipelines. The material of measurable liquid containers can be made of various kinds of materials like metal, glass or unfoamed plastics.

Portable ultrasonic liquid level indicator is the ultrasonic liquid level meter by ultrasonic technology, especially in fire protection system using CO2, Halon, FM200, NAF S III, FE 13, CEA 410 & Novec 1230 tanks. We also developed water-proof portable ultrasonic liquid level indicator with grade IP67 for marine fire suppression system liquid level inspection.

The portable ultrasonic level indicator is simple to operate and replaced the traditional means of verifying liquid levels like weighing cylinders. Users can get the gas bottle level position and output weight of gas left with one button. Portable ultrasonic liquid level indicator is the ideal choice for fire suppression gas amount checking in cylinders.

Application:

  • Fire Suppression Cylinders Liquid Level Inspection:

Applicable fire suppression agents: CO2, Halon, FM200, NAF S III, FE 13, CEA 410 & Novec 1230 tanks

level indicator

Features

  •  No contact with medium
  • l Suitable for toxic, corrosive, or invasive medium
  • l No need for drilling or welding on tank wall
  • l Reliable measurement results
  • l Easy and convenient to operate and maintain
  • l High-contrast OLED color display, suitable for outdoor use under strong light
  • l Simple to operate using button
  • l OLED light indicating liquid level
  • l Good user interface design
  • l Bilingual operation modes (Chinese/English)
  • l Comprehensive software displaysmeasurements in a simple manner
  • l Multi-probe sensor length can be choosed
  •  Liquid level or weight measuring results visually displayed.

Technical Parameters

Technical Parameters

  • Portable Ultrasonic Liquid Level Indicator
Measurement accuracy <5mm
Measurable range of wall thickness 3~30mm
Measurable tank material Steel, stainless steel, glass, unformed   plastics
Measurable medium Pure liquid, milky liquid, suspension   liquid
Ambient temperature -20℃~60℃ (-4°F~+140°F)
Ambient humidity 15%~85%RH
Power supply 18650 lithium batteries
Current 150mAh (on average)
Operation Duration (fully charged) > 8 hours
  • Water-proof Portable Ultrasonic Liquid Level Indicator (IP67)
Measurement accuracy <5mm
Measurable range of wall thickness 3~30mm
Measurable tank material Steel, stainless steel, glass, unformed   plastics
Measurable medium Pure liquid, milky liquid, suspension   liquid
Ambient temperature -20℃~60℃ (-4°F~+140°F)
Ambient humidity 15%~85%RH
Power supply Lithium rechargeable battery (Built-in)
Current 150mAh (on average)
Operation Duration (fully charged) > 8 hours

inner packing



17-11

3. Portable ultrasonic liquid level indicator with 440-740 standard probe

HS-MLI
